Description

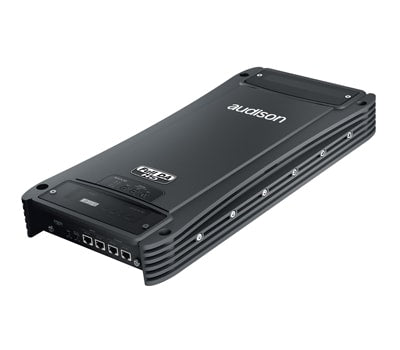

Audison VOCE AV 5.1K HD
How do you make the best even better? In the case of this versatile high-quality performer, by adding digital inputs! The latest evolution of this highly successful five-channel amplifier will receive digital inputs only, ensuring your precious audio signals arrive at the final stage of amplification in perfect condition.
For those serious about pristine reproduction of near perfect audio sources, the AV 5.1k HD is the only choice. Connect directly to the outputs of any bit processor or bit Pay HD using Audison's unique AD link. Connect AC link to allow full control.
AMPLIFIER STAGE
Distortion - THD (1k Hz @ 4 Ohm ) A, B Ch: 0.05 %
Distortion - THD (100 Hz @ 4Ohm), C (sub) Ch: 0.3 %
Bandwidth (-3 dB) A, B Ch: 5 20k Hz
Bandwidth (-3 dB) C (sub) Ch: 7 350 Hz
S/N ratio (A weighted @ 0dB) A, B Ch: 100 dB
S/N ratio (A weighted @ 0dB) C (sub) Ch: 87 dB
Damping factor (1k Hz @ 4 Ohm) A, B Ch: 100
Damping factor (100 Hz @ 4 Ohm) C (sub) Ch: 80
Gain (ON/OFF selectable): -15 / +3 dB
Minimum load impedance A / B / C Ch: 4 Ohm / 2 Ohm / 2 Ohm
NOMINAL POWER (RMS)
A + B + C Ch @ 12 VDC, THD 0,3%, 4 Ohm: 50 W x 2 + 120 W x 2 + 500 W x 1
OUTPUT
POWER (RMS)
A + B + C Ch @ 14.4
VDC, THD 1%:
5 Ch: 75 W x 2 (4 Ohm) + 140 W x 2 (4 Ohm) + 600 W x 1 (4 Ohm)
5 Ch: 75 W x 2 (4 Ohm) + 140 W x 2 (4 Ohm) + 1000 W x 1 (2 Ohm)
5 Ch: 75 W x 2 (4 Ohm) + 250 W x 2 (2 Ohm) + 1000 W x 1 (2 Ohm)
