Description

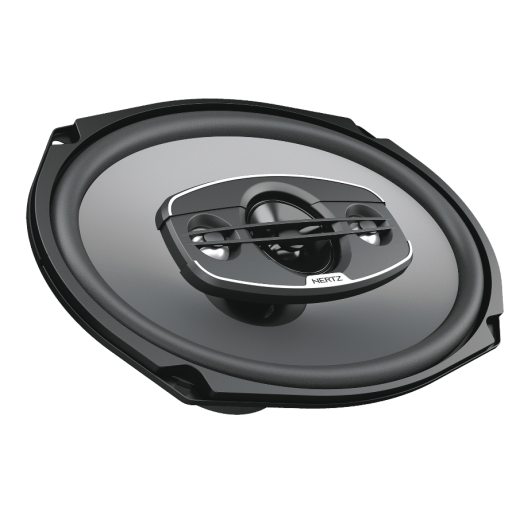

For our fans seeking strong emotions who have a 6”x9” OEM setup, Hertz offers the X 690, a 4 way monster with a power handling of 340 W. The double 15 mm piezoelectric super-tweeter with PEI dome extends the frequency response above 20 kHz, maximizing the stereo image.
- Power Handling - Peak W 340
- Power Handling - Continuous W 85
- Impedance Ω 4
- Frequency response Hz 45 ÷ 22k
- Sensitivity dB SPL 94
- Woofer size mm (in.) 6 x 9
- Tweeter size mm (in.) 40 (1.6)
- Supertweeter size mm (in.) 2 x 15 (0.6)
- Woofer Voice Coil Ø mm (in.) 25 (1)
- Tweeter voice coil Ø mm (in.) 20 (0.8)
- Woofer magnet High density flux ferrite
- Tweeter magnet Ferrite
- Woofer cone Water-repellent pressed paper
- Tweeter dome PEI
- Supertweeter dome PEI
- Double 15 mm piezoelectric super-tweeter with PEI dome to extend the frequency response above 20 kHz.
- 40 mm PEI tweeter with ferrite motor, for a brilliant reproduction of mid-high frequencies and compactness.
- Tweeter and super-tweeter faceplate optimized for exceptional off-axis performance.
- High stiffness metallic-grey finish pressed-paper cone with water-repellent treatment.
- Foam surround combining high sensitivity and deep bass response.
- Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
- High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
- Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
