Description

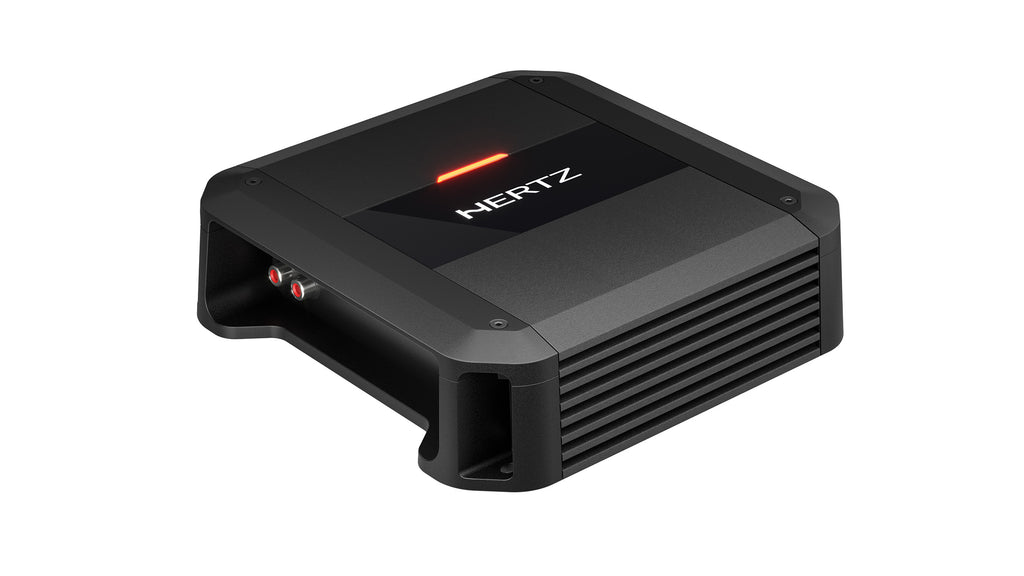

Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.
Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

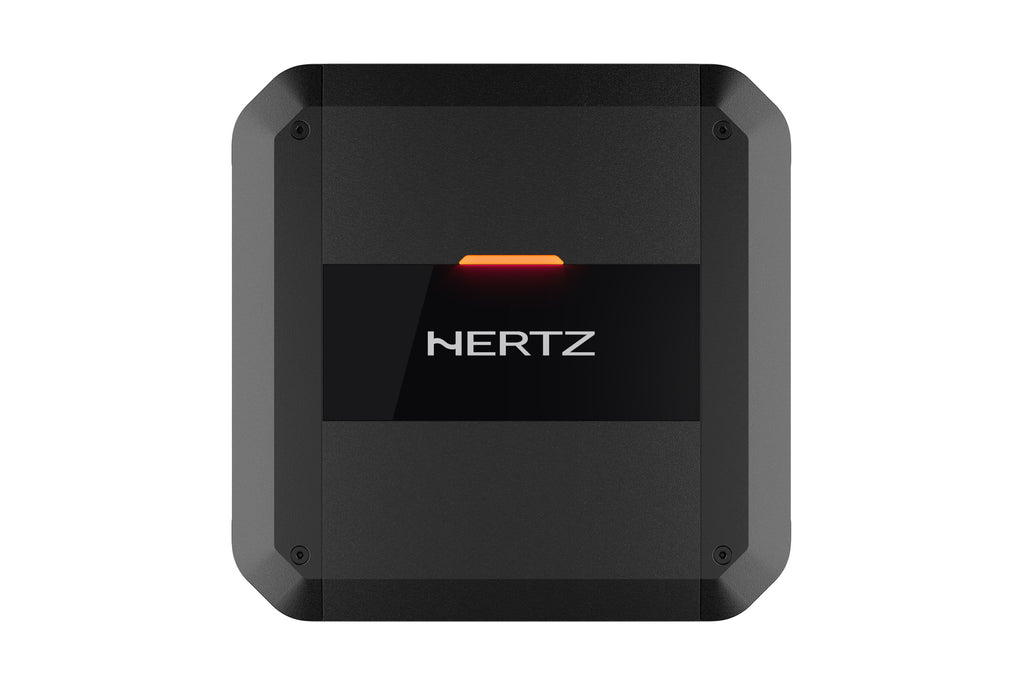

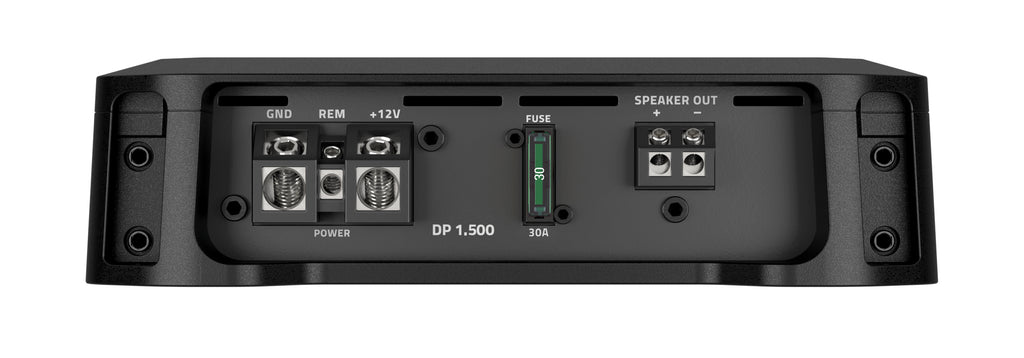

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

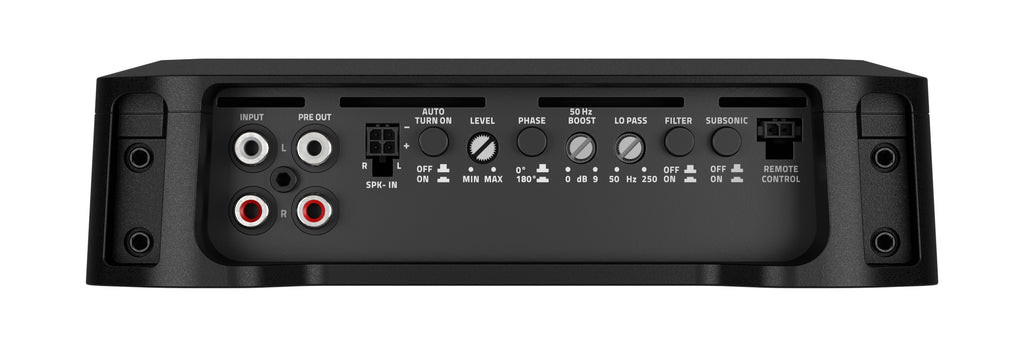

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 ÷ 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.) and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.
Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.
The optional HRC 02 Remote Control Ready provides the ability to tune the subwoofer level for any preference.
Whether utilizing Speaker-In or Pre-In level inputs, the DP 1.500 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 1.500 – where power, precision, and style converge for an unparalleled listening experience on the road.
Maximum Power in Compact Size: ADC (Advanced Class-D) 2Ω stable power output in a small and compact design.
• Attractive Design: elegant status LED, solid machined terminal block, and removable top panel to protect controls and connections.
• Universal Compatibility: operating supply voltage from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
• High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
• Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
• Automatic Remote Turn-On/Off: driven by OEM radio speaker outputs.
• Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
• HRC 02 Remote Control Ready: provides the ability to tune the subwoofer level for any preference.
| Channels | 1 |
| Amp class | D |
| POWER SUPPLY | |
| Nominal power supply voltage (fuse) | 11 ÷ 15 VDC (1 x 30 A) |
| Operating power supply voltage | 6.5 ÷ 17.5 VDC |
| Idling current | 1 A |
| Standby current draw | 50 uA |
| Consumption, MIN load impedance (Max Musical Power) | 21 A |
| Remote IN | 4 ÷ 17 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) | 1.5 VDC |
| Efficiency | 86% |
| AMPLIFIER STAGE | |
| Distortion - THD @ 100 Hz, 70% Rated Power | 0.2% |
| Damping factor @ 1 kHz, 1W | 180 |
| Bandwidth @ -3 dB | 10Hz ÷ 500Hz |
| S/N ratio (A-weighted @ 1 V Input) | 99 dBA |
| Minimum load impedance | |
| @ 1 Ch: | 2 Ω |
| Adjustable Crossovers | yes |
| Output power (RMS) @ 1% THD: | |
| 1Ch @ 4Ω | 280 W x 1 |
| 1Ch @ 2Ω | 500 W x 1 |
| Output Power (RMS) @ 14.4 VDC, THD 10%: | |
| 1Ch @ 4Ω | 350 W x 1 |
| 1Ch @ 2Ω | 590 W x 1 |
| Total Power | 1180 W |
| Inputs | Pre-In / Speaker-In |
| Pre Out | Full Range |
| Pre-In sensitivity | 0.32 ÷ 8 VRMS |
| Speaker-In sensitivity | 1.6 ÷ 40 VRMS |
| Lo-Pass | OFF / 50÷ 250Hz 24dB/Oct. |
| Subsonic | OFF / 25 Hz @ 24 dB/Oct. |
| Phase | 0 / 180° |
| Bass Boost 50Hz | 0 ÷ 9 dB |
| SUB Remote Volume Control HRC 02 | -20 ÷ 6 dB |
| Dimension | mm | in |
| A | 190 | 7.48 |
| B | 152 | 5.98 |
| C | 190 | 7.48 |
| D | 166 | 6.53 |
| E | 50 | 1.96 |
| Weight | Kg | lbs |
| 1.62 | 3.57 |
