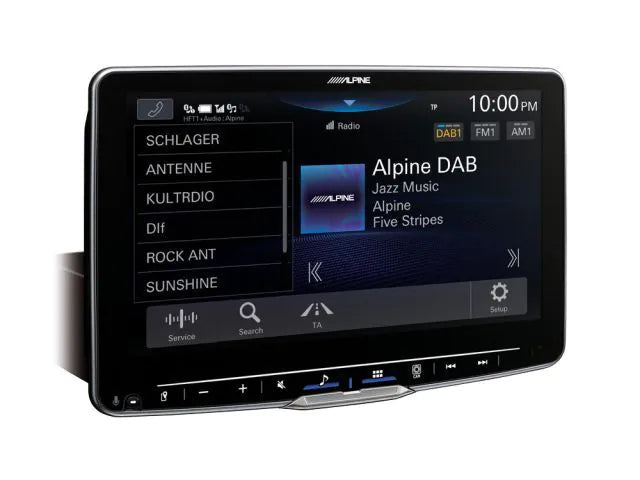

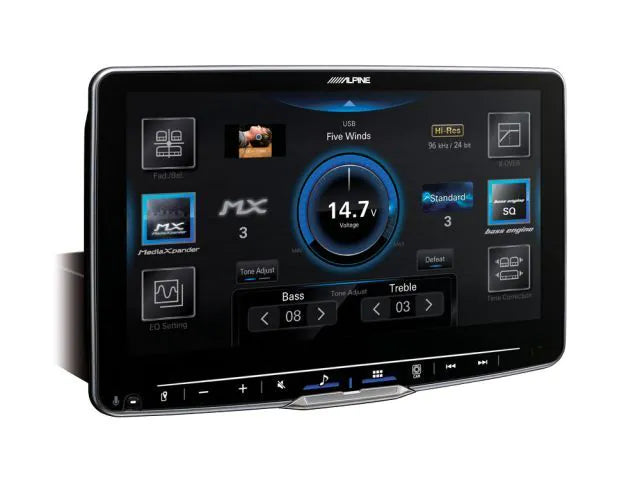

Alpine ILX-F905D - Wireless Carplay, 9" Floating Screen, DAB, Wired Android Auto, Bluetooth


Price:
£879.99
 More payment options

Description

The iLX-F905D Alpine Halo9 is the second generation of Alpine’s world-famous Halo product line, featuring a 9-inch high-resolution WXGA touch-screen and is compatible with virtually any vehicle with 1DIN or 2DIN installation dock. The super-slim display appears to simply hover over your dashboard and can be adjusted in various ways for the best position.

Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.

Bring exceptionally good sound quality into your vehicle: the Alpine Halo9 is the world’s first Head Unit featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as 2-way X-overs, a Parametric EQ, digital time correction and much more.



FEATURES:


Radio / DAB Tuner

  • Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
  • Memory: Auto Memory
  • Seek Mode: Local, DX, Pre-Set, Service
  • RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
  • DAB+/DMB Supported
  • DAB+ Slideshow Service
  • DLS (Dynamic Label Service)
  • DAB Service Following
  • RDS Fallback (where available)
  • Auto Ensemble/Service Memory
  • Service Search Function
  • PTY Search Function
  • Alphabet Search Function

BLUETOOTH®

  • Built-in BLUETOOTH® Module V4.2
  • HFP (Hands-Free Profile) Compatible
  • A2DP (Advanced Audio Distribution Profile) Compatible
  • AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
  • Phone Book Synchronization
  • Speed Dial: 4 Preset Memory (per phone)
  • Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
  • Redial Function
  • Speech Volume Level Adjustment: (Outgoing and Incoming)
  • 24 Menu Languages
  • Microphone Included

Works with iPhone®

  • Compatible with iPhones and iPods featuring a lightning connector
  • Various search functions and Album Artwork Display
  • Battery Charging

Connectivity

  • Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)

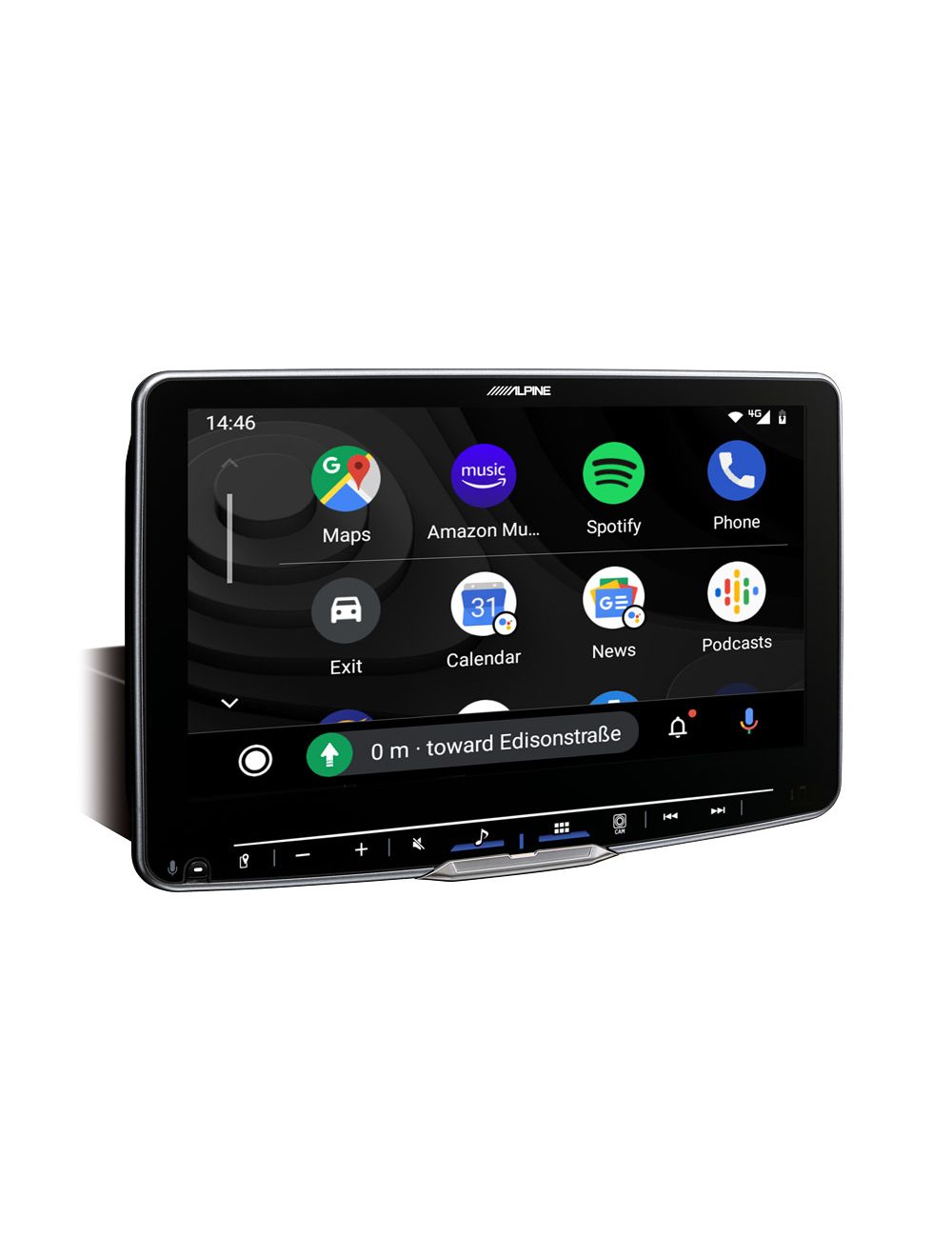

  • Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
  • Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam

Navigation Function

  • Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
  • Includes GPS / Glonass enabled navigation antenna

USB Media Connection

  • 2x USB cable included
  • USB port 1: data port / USB port 2: charging port
  • Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
  • Video Playback: MP4, MOV, FLV, MKV compatible
  • Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
  • Various search functions included

Sound Tuning

  • Bass Engine SQ and Bass Engine PRO sound tuning
  • Subwoofer Level Adjustment
  • 4 V PreOut
  • 10 Equalizer PreSets
  • 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
  • 6-Channel Digital Time Correction
  • 2-way Digital Crossover
  • Independent Source Volume Level Setting
  • For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section

General

  • 4x 50 Watts Class-D High Power Amplifier
  • 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
  • Display angle adjustable after installation
  • 3 PreOuts (4 V, Front / Rear / Subwoofer)
  • 1 A/V AUX Input (3.5 mm micro jack)
  • 1 HDMI input / 1 HDMI output
  • 2 USB Ports (1x USB data port / 1x USB charging)
  • Steering Wheel Remote Control Ready
  • Vehicle Display Interface Ready (UART connection)
  • Remote Control Ready
  • 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
  • Camera Distance Guides (adjustable)
  • Live Contrast Adjustment
  • Menu Language: 24 Languages
  • Auto Dimmer
  • Anti-theft security code
  • Engine Start-Stop unaffected

Installation

  • Various vehicle specific installation kits available

SPECIFICATIONS

Screen

  • Screen Size: 9-inch Capacitive WXGA
  • Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
  • Illumination System: White LED Backlighting
  • Effective Number of Picture Elements: 99.99%
  • Colour System: NTSC, PAL

Max Power Output Ratings

  • Max Power Output: 4x 50 W

Radio / DAB Tuner

  • FM Tuning Range: 87.5 - 108.0 MHz
  • AM Tuning Range: 531 - 1,602 kHz
  • DAB band III: 174 – 240 MHz
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC

WiFi

  • Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
  • Channels: 1 – 13 ch (2.4 GHz)
  • Security Protocols: WPA3/WPA2-PSK (TKIP, AES)

USB

  • USB Requirements: USB 2.0
  • USB 1: data port / 2,400 mA (Mass Storage Class)
  • USB 2: charging port / 1,500 mA (CDP support)
  • USB Class: Mass Storage Class, Play From Device
  • File System: FAT16 / FAT32 / exFAT
  • FLAC, MP3, WMA, AAC, WAV, APE Decoding
  • Video Playback: MP4, MOV, FLV, MKV compatible
  • Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
  • Total Harmonic Distortion (at 1 kHz): 0.005%
  • DynamicRange(at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 95 dB

GPS / Glonass

  • GPS / Glonass compatible navigation antenna included
  • GPS frequency: 1575.42 +/- 1.023 MHz
  • Reception sensitivity (search): - 136 dB max

BLUETOOTH®

  • BLUETOOTH® Version: Bluetooth V4.2
  • Output Power: +4 dBm Max. (Power class 2)
  • HFP (Hands Free Profile)
  • OPP (Object Push Profile)
  • PBAP (Phone Book Access Profile)
  • HSP (Head Set Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio/Video Remote Control Profile)
  • SPP (Serial Port Profile)
  • Supports LDAC Audio Codec

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • Subwoofer Phase Setting: 0° or 180°
  • BASS ENGINE SQ: 5 Modes, Level 0 to +6
  • For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section

HDMI Section

  • Input Format 720p / 480p / VGA

General

  • Power Requirement: 14.4 V. DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 4 V / 10k ohms

Dimensions

  • Weight: 2.3 kg
  • Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
  • Display Size (W x H x D) mm: 232 x 151 x 55 mm

Please Note:

Due to the weight of the large screen, we do not recommend fitting this radio in dashboards only with use of a traditional type of 1DIN frame. Please use radio kits that are properly rooted in the dashboard
