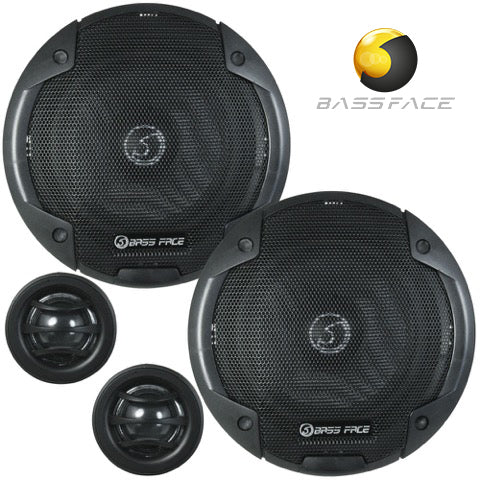

Bassface BLACKSPL5C.1 - 5.25" Component Set (Pair)


Price:
£59.99

Description

KEY FACTS


Product Category Coaxial & Component Speakers
Version 1
Series Black
Date Added 01/05/2015
Date Modified 27/10/2017
Barcode 617529407946
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 2700
Complete Product Pack Weight (g) 3580
Retail Carton L (mm) 390
Retail Carton W (mm) 290
Retail Carton H (mm) 105
Warranty (Months) 12
Sold As Kit

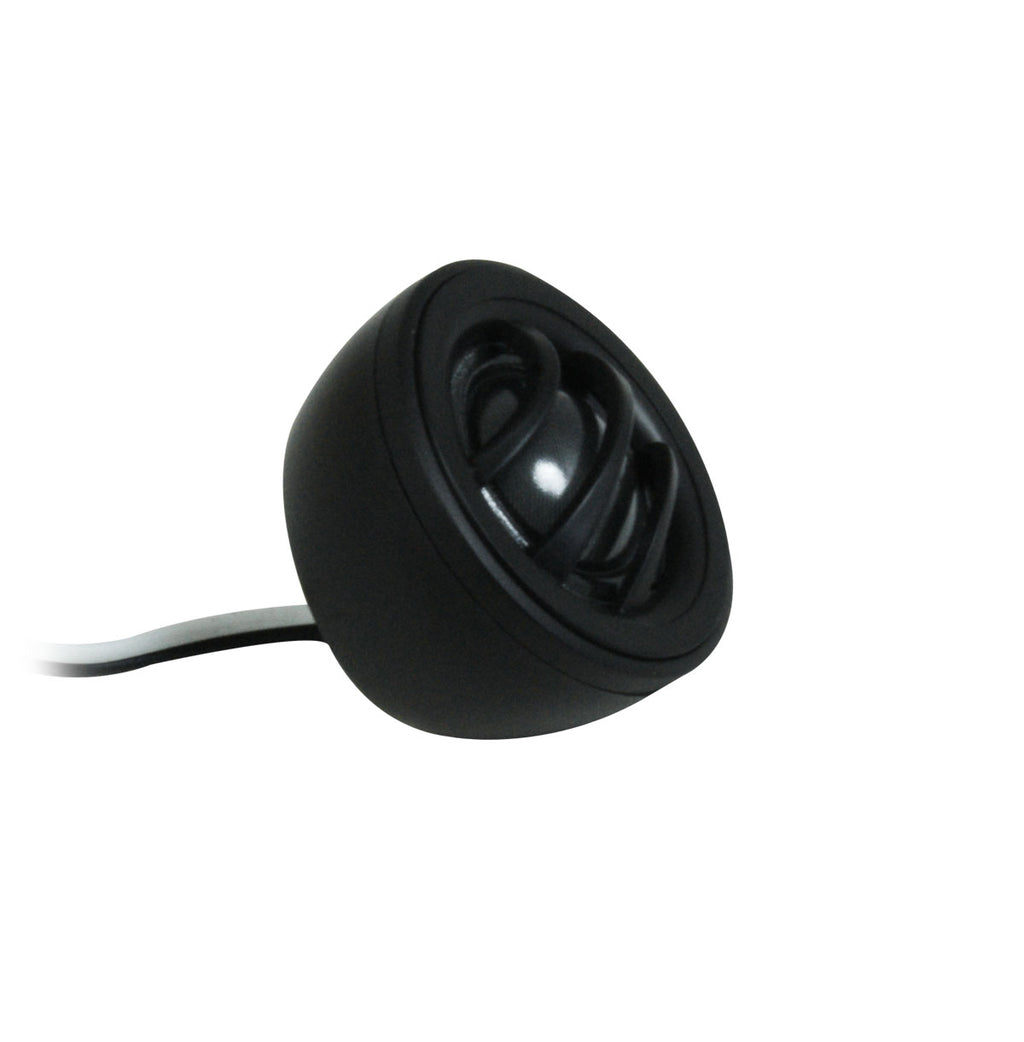

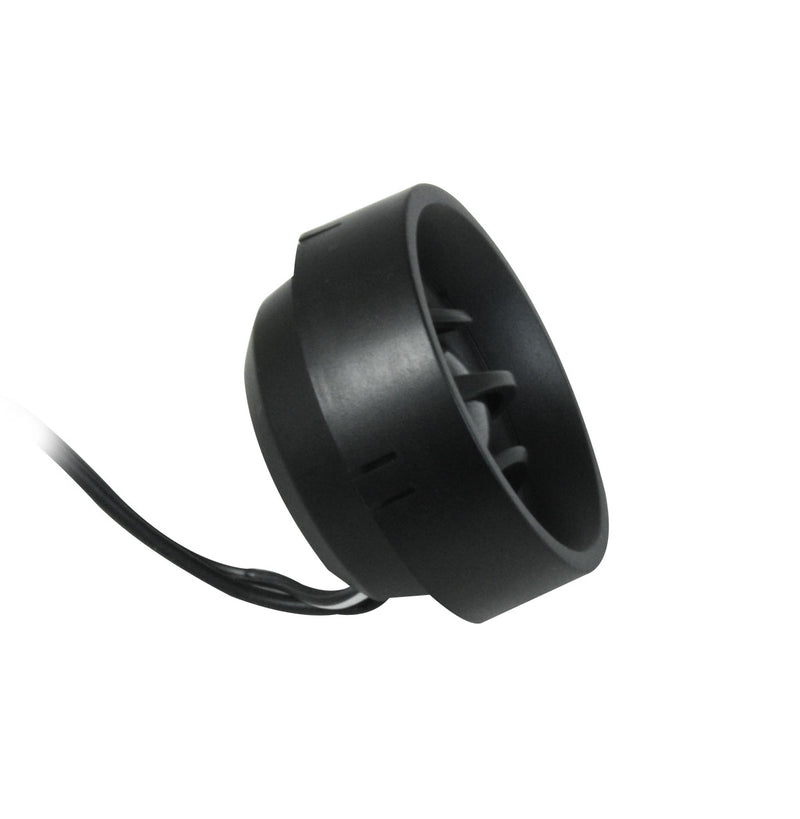

TWEETER DATA


Overall Depth (mm) 30
Mounting Depth (mm) 17
Front Protrusion From Mounting Plane (mm) 13
Overall Diameter (mm) 55
Installation Cut-out Diameter (mm) 50
Magnet Type Neodymium
System RMS (Watts) (Using Pair Of Tweeters Not Necessarily Included) 150
Frequency Response (Hz) 3500-23000
Impedance (Ohm) 4

SPEAKER DATA


Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 125
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 100
Overall Diameter With Lugs (mm) 150
Overall Diameter With Grilles (mm) 160
Overall Diameter (mm) 150
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 95
Installation Cut-out Diameter (mm) 116
Grille Depth (mm) 25
Overall Depth (mm) 70
Mounting Depth (mm) 64
Front Protrusion From Mounting Plane (mm) 6
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 45-23000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 97



SYSTEM POWER


Full System Power Handling RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) 400

TECHNICAL HIGHLIGHTS


  • Cast Aluminium Basket Reduces Mechanical Distortion
  • Oversize 1.2” Voice Coil For High Power Handling
  • High Power Crossover With Hi-Freq Attenuation Switch
  • Extra VC Cooling Vents Decrease Power Compression
  • Woven Black Fibre Cone Provides Superior Dynamics
  • Large Single Roll Non Fatiguing Rubber Surround
  • Rigid Large Dustcap Increases Cone Stiffness
  • Large Clear Silk Dome Tweeter
  • High Magnetic Flux Motor Design
  • Sibilance Minimising Tweeter Protection
  • Engineered For SQ OEM Location Install Use

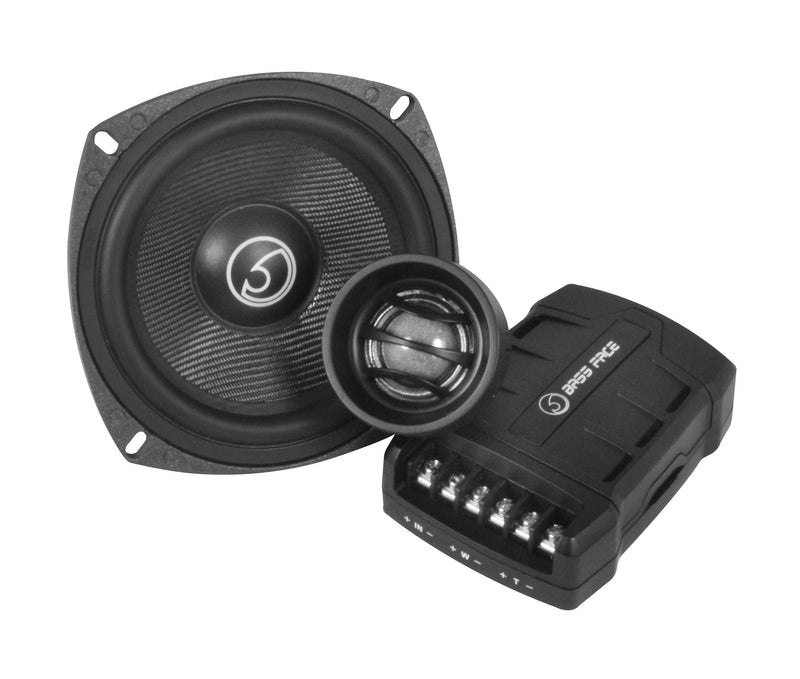

WHAT'S IN THE BOX?


  • 2 x BLACKSPL5C.1 Midbass Speakers
  • 2 x BLACK Tweeter Units Including Housing
  • 2 x Crossover
  • 2 x 1m Cable for Midbass
  • 2 x 2m Cable
  • 8 x Self Tapping Screws
  • 8 x Speed Spire Nuts
  • Grill Glue
