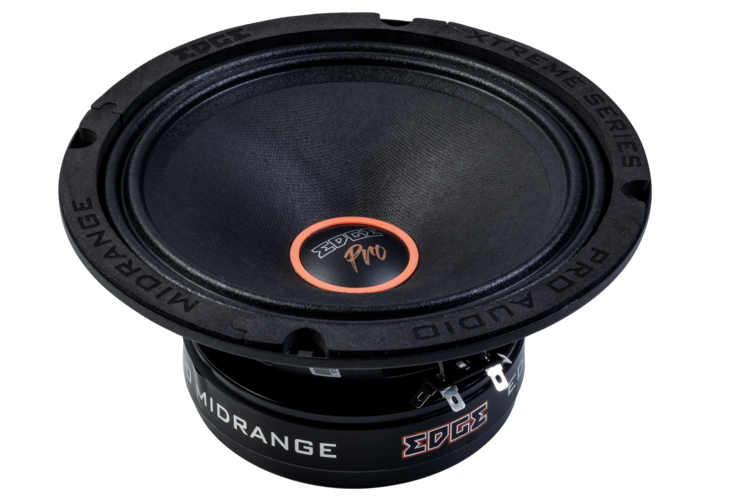

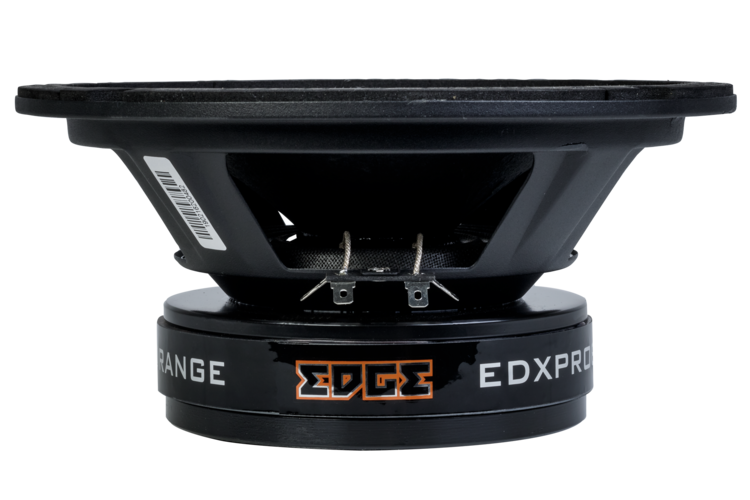

EDGE EDXPRO8W-E9 - 8" Wideband Midrange Speaker (PAIR)


Price:
£89.99

Description

Specification
  • Model: EDXPRO8W-E9
  • Type: Pro Audio Midrange
  • Sound Profile: Wide bandwidth
  • Speaker Size: 8" (200mm)
  • RMS Power: 150 watts
  • Peak Power: 300 watts
  • Sensitivity: 96dB
  • Frequency Response: 95Hz - 18kHz
  • Impedance: 4 Ohms
  • Recommended Amplifier: EDA350.2-E7

Features

  • Non pressed paper cone
  • Dual roll foam surround
  • Poly cotton spiders
  • Spring terminal
  • EVA gasket
TS Parameters
  • Fs 61.4060
  • Fs Added Mass 46.6482
  • Fs Known Vol 0.0000
  • Added Mass 10.0000
  • Known Vol 0.0000
  • Diameter 150.0000
  • ZMax 45.8957
  • ZMax Added Mass 23.5710
  • ZMax Known Vol 0.0000
  • Z F1F2 12.1188
  • Re 3.2000
  • Rms 0.3042
  • Qms 17.3065
  • Qes 1.2971
  • Qts 1.2067
  • Cms 0.4923
  • Mms 13.6460
  • BL 3.6040
  • VAS 21.4663
  • dBSPL 87.8569
  • L 1kHz 0.1589
  • L 10kHz 0.1288
  • CAS 1.537300E-0007
  • RAS 974.1862
  • MAS 43.6979
  • RAT 13972.1800
  • SD 0.0177
  • LCES 6.3942
  • CMES 1050.5920
  • RES 42.6957
  • MMD 12.3164
  • RMT 4.3632
  • eta 0.3679
  • Z Min 3.2487
  • Z AVG 6.3430
