Description
Specifications
- 2-Channel Class D Mini Digital Amplifier
- 2 x 140/250 Watts RMS @ 4/2 Ω
- 1 x 500 Watts RMS @ 4 Ω bridged
- HPF 10-500 Hz,
- LPF 50-5000 Hz
- Bandpass Mode
- Dimensions 190 x 35 x 102 mm
- Efficiency up to 88%
Features
- Advanced Class D Technology with very high Efficiency
- Selected and audiophile tuned Components
- Compact Aluminum Heatsink and lateral Die-cast Parts
- High Level Inputs with Error Protection System (EPS)
- Auto Turn-On Function
- Start/Stop Ready
- MOSFET PWM Power Supply
- 3-Way Protection Circuit
- RCA & High Level Inputs (via Molex)

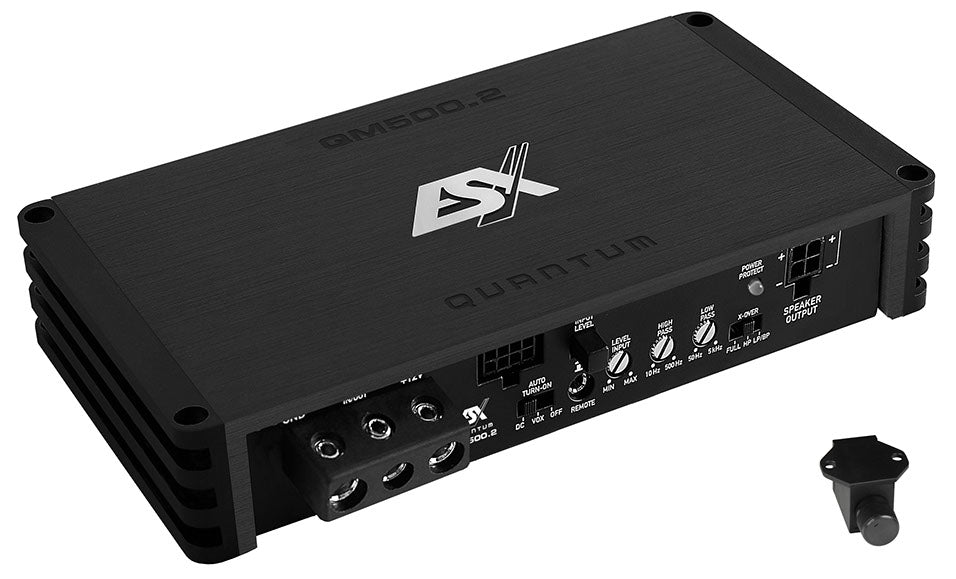

- Compact Bass Remote Controller
Digital amplifier power has never been more compact and affordable: With a size of just 190 x 35 x 102 mm, the three new ESX QUANTUM QM miniature power plants are convincing all along the line. The QM amps offer state-of-the-art technology in a very small space and are all solidly constructed. All three amps are based on the somewhat larger sibling models of the ESX QUANTUM QL series, only a bit more compact and much easier to install. Thanks to the high level inputs including EPS and the automatic turn-on function, they are also perfectly suited for integration in factory sound systems. Each model is also equipped with a compact bass level remote control.
