Description

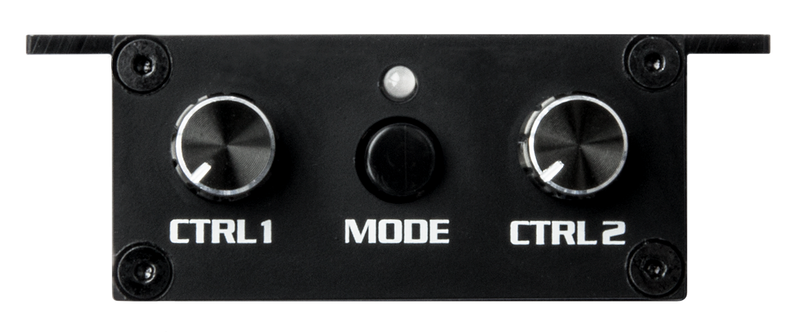

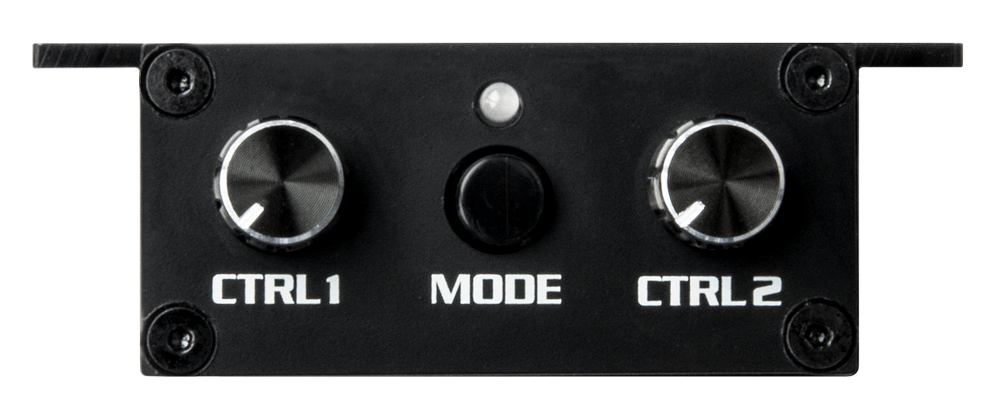

The universal cable remote control URC.3 allows controlling different functions such as subwoofer volume or HEC / MEC / AUX volume of BRAX, HELIX and MATCH DSP products. It consists of two rotary knobs and a switch, all of which can be easily defined from our DSP PC-Tool suite. The specific configuration options for each product can be found in the "Device configuration menu” (DCM) software package.
- CONTROL I and CONTROL II (CTRL): Various functions can be selected in the DSP PC-Tool Software, e.g. controlling the master volume, controlling the subwoofer volume, controlling the HEC / MEC / AUX volume etc.
- MODE: Various functions can be selected in the DSP PC-Tool Software, e.g. activating the digital input, activating the HEC / MEC / AUX input, switching between two DSP-setups, deactivating all sound optimizing features of the DSP for demonstration purposes etc.
- STATUS LED: The LED shows the status of the MODE switch
- 17’ / 5.2 m connection cable
- Mounting material included
Control elements | 2 x Rotary knob 1 x Switch |
Cable length | 5,2 Meter |
Connector | MiniDIN (8-pole) |
Functionality BRAX NOX4 DSP | Control I / II: - Master Volume - Subwoofer Volume - Digital Volume |
Functionality HELIX DSP PRO (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
Functionality HELIX DSP MINI | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
Functionality HELIX DSP.2 | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
Functionality HELIX DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - AUX In - Digital In - Setup Switch |
Functionality HELIX P SIX DSP (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
Functionality HELIX V EIGHT DSP | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
Functionality MATCH DSP | Control I / II: - Master Volume - AUX Volume - Subwoofer Volume Mode Switch: - Demo Mode - AUX In - Setup Switch |
Functionality MATCH M 5DSP | Control I / II: - Master Volume - Digital Volume - Subwoofer Volume Mode Switch: - Demo Mode - Digital In - Setup Switch |
Functionality MATCH UP 7BMW | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
Functionality MATCH PP 86DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
Functionality MATCH PP 82DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Demo Mode - AUX In - Digital In - Setup Switch |
Functionality MATCH PP 62DSP | Control I / II: - Master Volume - MEC Volume - Subwoofer Volume Mode Switch: - Demo Mode - MEC / AUX In - Setup Switch |
Functionality MATCH PP 52DSP | Control I / II: - Master Volume - AUX Volume - Subwoofer Volume Mode Switch: - Demo Mode - AUX In - Setup Switch |
Functionality C-DSP / P-DSP | Control I: - Master VolumeControl II: - Subwoofer Volume Mode Switch: - Opto Mode |
Explanation:
Control I & Control II functionalities:
Master Volume = controlling the master volume
Subwoofer Volume = controlling the subwoofer volume
Digital Volume = controlling the volume of the digital input
HEC / MEC / AUX Volume = controlling the volume of the HEC / MEC / AUX input
Mode Switch functionalities:
Setup Switch = switching between DSP memory 1 and DSP memory 2
Digital In = switching between the analog and digital input
HEC / MEC / AUX In = switching between the analog and HEC / MEC / AUX input
Demo Mode = deactivating all sound optimizing features of the DSP for demonstration
Opto Mode = switching between the analog and optical input
delivery contents
1 x Cable remote control URC.3
1 x Connection cable 17’ / 5.2 m
1 x Mounting material
compatibility
BRAX | NOX4 DSP* |
HELIX | DSP PRO (MK1/MK2) DSP MINI DSP.2 DSP C-DSP* P SIX DSP (MK1/MK2) V EIGHT DSP |
MATCH | DSP M 5DSP PP 86DSP PP 82DSP PP 62DSP PP 52DSP |
