Description

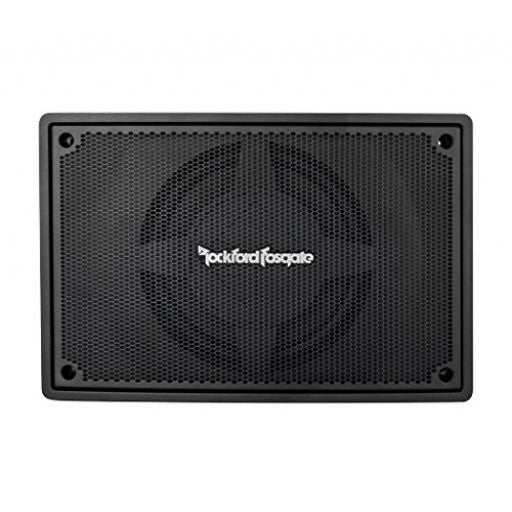

The Punch PS-8 is an self-contained amplified subwoofer system featuring a single Punch 8" driver in a sealed enclosure and a built-in 150 watt amplifier.
- "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
- 150 Watt Class D Amplifier and 8" Shallow Woofer
- Adjustable 12db/Octave low pass crossover
- Built-in adjustable bass boost EQ
- Remote bass level control included
- Hi-level/low-level inputs
- Built-in 0°/180° phase switch
- Remote/DC Offset/Signal Sense turn on select
- Short circuit, thermal, and reverse polarity protection
- Quick disconnect power and signal connections
- Includes all power, ground, and turn-on wires
- Includes mounting hardware
- CEA-2031 Compliant: CEA-2031 Guidelines
- CEA-2006 Compliant: CEA-2006 Guidelines
- Woofer Quantity: 1
- Woofer Size: 8"
- Woofer Series: Proprietary
- Nominal Impedance (ea): n/a
- Power Handling:150 Watts RMS
- System Configuration: Sealed
- Enclosure Material: Cast aluminum w/ ABS backplate
- Speaker Connector: n/a
- Frequency Response: 25Hz to 150Hz
- Integrated Amplifier: 150 Watts RMS
- Crossover Controls: Variable 50Hz to 120Hz @ 12dB/Octave Butterworth
- Tone Controls: Gain & Bass Boost
- Signal Input: Low-Level: 1 RCA Pair
- High-Level: Left/Right Summed Inputs
- Power Input Connector: Removable Connector
- Power/Ground/Remote
- Power Wire Gauge: Included
- Heat Sink Type: Cast Aluminum
- Cooling: Convection
- Remote Control:Included
- Visual Indicators:Power
- Protect
- Circuit Topology Class:Class-D
- Shipping Weight:
- Dimensions: 14.4 x 9.4 x 3.3 (in)
- 36.5 x 23.8 x 8.3 (cm)
