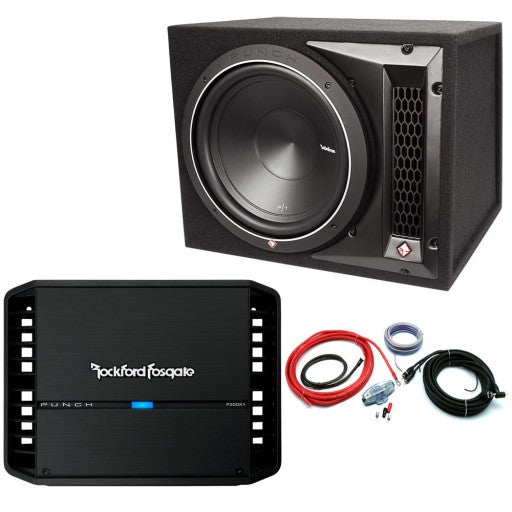

Rockford Fosgate Punch 10" Enclosure Mono Bass Package (P1-1X10 & P300X1)

• Package includes:
• Rockford Fosgate Punch P1-1X10 - Single R1 10” 500 Watt Loaded Enclosure
• Rockford Fosgate Punch P300X1 - 300 Watt Mono Amplifier
• 8 Gauge Wiring Kit

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P1 Loaded Enclosures feature similar tonal performance as P2 & P3 models, but are easier to move in-n-out of vehicles due to their lighter weight.

• Constructed with 5/8" MDF
• Proprietary high-flow, low-noise port
• High current binding posts

Specifications:

• Woofer Size: 10"
• Woofer Series: Punch P1 (P1S4-10)
• Nominal Impedance (ea): 4-Ohm
• Internally wired to create a 4-Ohm amplifier load
• Power Handling: 250 Watts RMS / 500 Watts Max
• System Configuration: Vented
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Speaker Connector: Up to 10 AWG compression terminals
• Shipping Weight: 36 Lbs. (16.32 kg)
• Dimensions: 13.125" x 17" x 15.125" (33.3cm x 43.2cm x 38.4cm)

The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.

• High level input capable with Auto Turn-On circuit
• RCA pass-thru outputs
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz.
• Muted turn on
• Stealth top mounted control panel
• Cast aluminium heatsink
• Short circuit protection
• Over current protection

Specification:

• Number of Channels: 1
• Rated Power(RMS Continuous Power):
• 200 Watts x 1 @ 4-Ohm
• 300 Watts x 1 @ 2-Ohm
• Total Power (Sum of Rated Power): 300 Watts
• Dynamic Power (PVC/PowerCube® Measurement):
• 260 Watts x 1 @ 4-Ohms 0° Res
• 444 Watts x 1 @ 2-Ohms 0° Res
• Frequency Response: 20Hz to 20kHz +/- 1.0dB
• Efficiency (average): 74% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise):
• 4-Ohm: <1.0%
• 2-Ohm: <1.0%
• Crossover Controls: High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
• Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
• All-Pass: Yes
• Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
• Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
• Function depends upon LP/AP/HP switch position
• Input Sensitivity: 150 mV - 12 V
• Signal Input: Hi/Low level: 1 RCA pair
• Signal Output: Low Level: 1 RCA Pair
• Power Input Connector:     Captive C-Clamp
• Power Wire Gauge: 8 AWG to 4 AWG
• Speaker Output Connector: Captive C-Clamp
• Speaker Wire Gauge: 8 AWG to 18 AWG
• Heat Sink Type: Cast aluminium
• Cooling: Convection
• Remote Controls: Optional Punch Level Control (PLC2) Ready
• Visual Indicators: Power/Protect/Thermal LED
• Input Clip LED
• Output Clip LED
• Circuit Topology Class: Class-A/B
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse (not included): 50 A
• Max. Current Draw (13.8V Sinewave): 45 A
• Average Current Draw (13.8V Music): 23 A
• Suggested Alternator:     75 A
• Shipping Weight: 9.5 Lbs. (4.30 Kg.)
• Dimensions (HxWxL): 2.38 x 7.76 x 9.86 (in) / 6.05 x 19.71 x 25.04 (cm)

The Connects2 PRO Series 8 AWG 720 Watt Amp Wiring Kit provides an installation kit with 8 gauge flexible power and ground cable. It is perfect for providing superior current flow and high quality speaker and RCA signal cable for professional sound and performance.

PRO Series wiring kits give you everything you need to install a car power amplifier or amplified bass box.

• 8AWG CCA Power Cable - 5.2m Red frosted cable with mounted ring terminal, 6.7mm.
• 8AWG CCA Ground Cable - 0.8m Black frosted cable with mounted ring terminal, 6.7mm.
• Speaker Cable - 5m Blue/White frosted cable, 1.5mm.
• RCA Cable - 5m Black cable with remote wire.
• Gold plated RCA plugs, one end straight, one end angled.
• Fuse Holder - Waterproof Nickel plated Mini-ANL Fuse holder with 60A Mini-ANL Fuse.
• Terminals - 2pcs fork terminals
• For the installation of aftermarket amplifiers & active boxes
• Complete kit with all components required
