Description

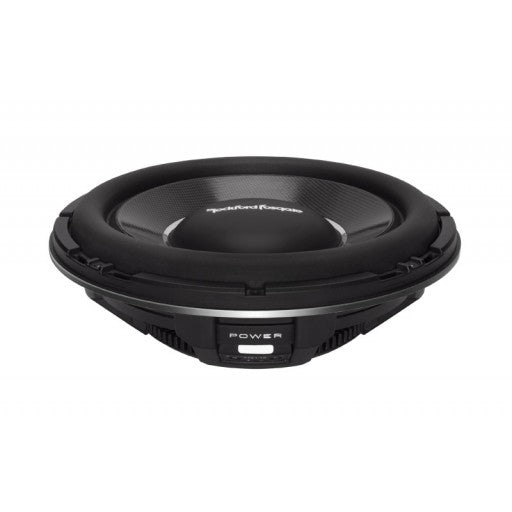

The Power T1S2-12 is a slimline 12" subwoofer designed for spaces where traditional sized woofers will not fit. Features a single 2-ohm voice coil for simplified wiring configurations.
- Carbon fiber/PMI/glass fiber cone with aluminium dustcap
- Injection molded foam surround with VAST™
- Dual Nomex progressive spiders with integrated lead wires
- Aluminium diecast frame with integrated heat sink fins
- Custom insulated push spring 10 AWG terminals
- Dual wound 2.5" voice coil with interior/exterior windings
- Encapsulating voice coil to former coupling technology (patent pending)
- Detachable die cast aluminium trim ring
- Vented pole piece
- High temp high energy neodymium motor structure
- Proprietary split yoke pass thru motor technology (patent pending)
- Integrated copper cap heat sinking shorting ring (IDHS)
- Optional grille insert available
- Optimized for sealed enclosures
- CEA-2031 Compliant: CEA-2031 Guidelines
- Size: 12"
- Nominal Impedance: 2-Ohm
- Power Handling (Watts RMS): 600 Watts RMS
- 1200 Watts Max
- Voice Coil Diameter: 2.98" (75 mm)
- Magnet Weight (oz): 14.42 oz. (0.41 Kg)
- Speaker Connector: 10 AWG slot loaded
- Fs (Hz): 37
- Re (Ohms): 1.7
- Le (mH): 0.45
- Qms: 11.22
- Qes: 1.17
- Qts:1.06
- Vas (Liters): 32.4
- Sd (cm2): 560
- SPL (dB @ 1w/1m): 84
- Xmax (mm): 15
- Woofer Displacement (in): 0.11 cu. ft. (3.12 Liters)
- Cutout Diameter (in): 11.22 in. (285 mm)
- Mounting Depth (in): 3.01 in. (76.5 mm)
