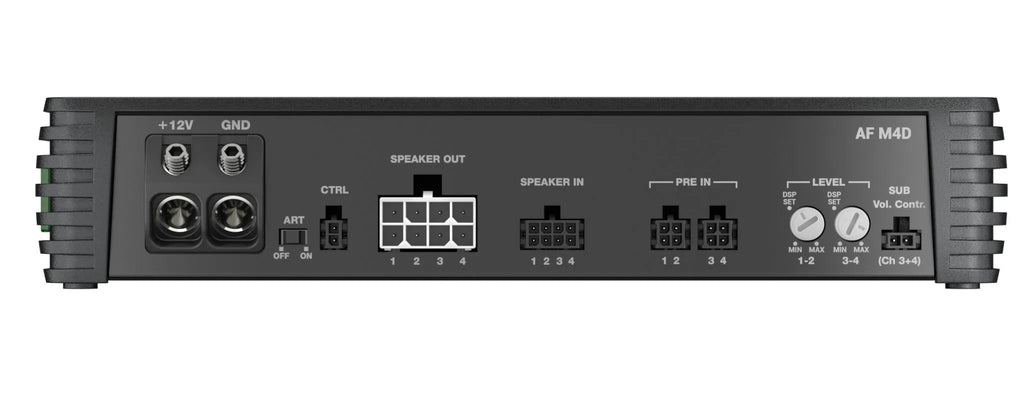

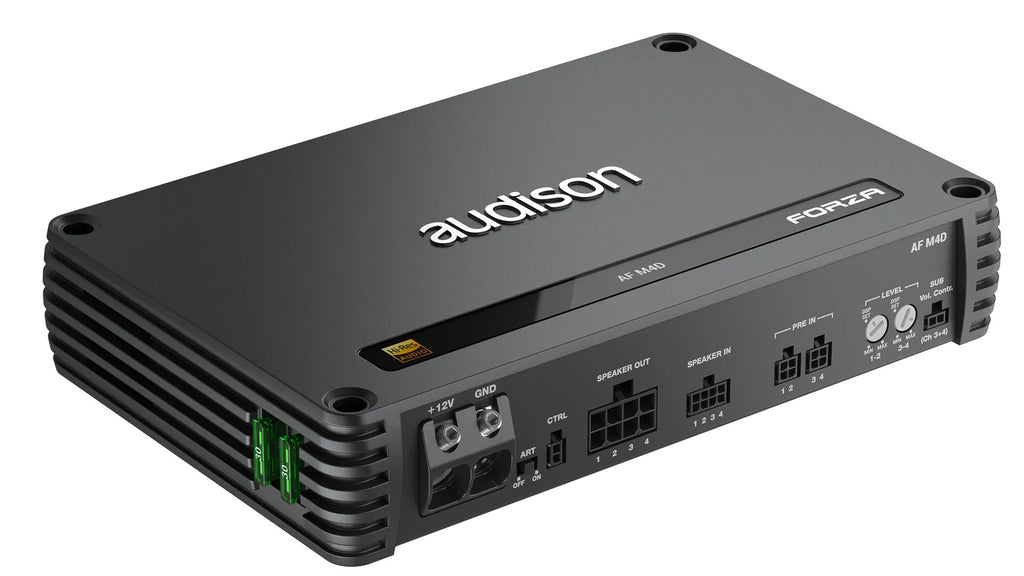

Audison Forza AF M4D - 4 Channel Amplifier


Price:
£649.99

Description

AMPLIFIER TECH DATA

Channels 4
Class D-Class
Efficiency 83 %
Hi Level Input Yes
Low Level Input Yes
Digital Input No
Power supply voltage / fuse 11 ÷ 15 VDC
Operating power supply voltage 6.5 ÷ 17.5 VDC
Idling current 1.12 A
Idling current when off 0.007 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 47 A
Remote OUT 6.5 ÷15 VDC (150 mA)
Remote IN 4 ÷15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 VDC

AMPLIFIER STAGE

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.05%
Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 42 kHz
S/N ratio A (A weighted @ 1 V): 103 dBA
Input sensitivity Pre-In 0.6 ÷ 6 VRMS
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
Total Power RMS 1040 W
Minimum load impedance 4 Ch 2Ω
2 Ch - (Bridge) 4Ω
Output Power (RMS) @14.4 VDC, 1% THD 4Ch @ 4Ω: 160 W x 4

4Ch @ 2Ω: 260 W x 4

2Ch (Bridge 1/2; 3/4) @ 4Ω: 520 W x 2
Adjustable Crossover No

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V 150 W x 4
SN ratio (ref. 1W output) 80 dB

INPUTS

Input Type Pre-In / Speaker-In
Remote Sub Volume ±12 dB

OTHER

Fuse 2 x 30A
Weight 2.04 kg

DIMENSIONS

Dimension A 240 mm
Dimension B 156 mm
Dimension C 47 mm
